Dielectric constant (relative permittivity) and dissipation factor can be measured using a HP 4284A LCR meter with a HP 1645B test fixture. The frequency range is 20 Hz to 1 MHZ. The dissipation factor is a measure of energy lost during the reversal of electric polarization. It is expressed as a fractional energy loss.
What is dissipation factor test?
Dielectric dissipation factor testing, also known as tangent delta or power factor testing, is a measure of the dielectric losses in an insulation system. In the field of rotating machines, this technique is widely used as an appropriate means of assessing the quality of new and also aged stator winding insulation.How is the dissipating factor of a capacitor is measured?

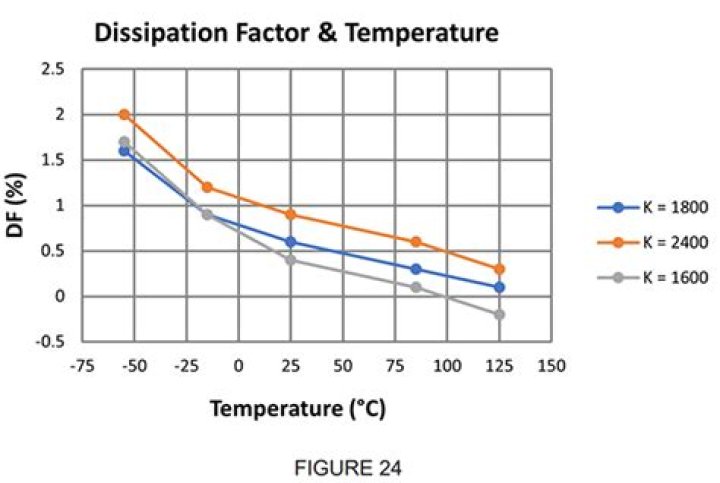

The dissipation/power factor measurement is a high-voltage AC test. The value is measured by comparing the test object to a known standard reference capacitor (C). The test voltage and frequency as well the main insulation capacitance determine the required test current.What is dissipation factor and quality factor?
In physics, the dissipation factor (DF) is a measure of loss-rate of energy of a mode of oscillation (mechanical, electrical, or electromechanical) in a dissipative system. It is the reciprocal of quality factor, which represents the "quality" or durability of oscillation.What is dissipation factor in PCB?
Dissipation factor, also known as loss tangent, is a printed-circuit-board (PCB) material parameter probably often overlooked when engineers size up their possible choices for PCB materials. But it is a parameter that can tell a great deal about how a material will perform in different applications and environments.Power Transformer Testing - Measuring capacitance and power factor or dissipation factor
What is the difference between Dk and Df?
The term "Dk" refers specifically to the real part of the dielectric constant (i.e., the refractive index), while the term "Df" refers to the imaginary part. Note that the imaginary part of the dielectric constant only determines losses, while the real and imaginary parts collectively determine dispersion.What is dissipation factor in dielectric analysis?
Dissipation factor is defined as the reciprocal of the ratio between the insulating materials capacitive reactance to its resistance at a specified frequency. It measures the inefficiency of an insulating material.What is the unit of dissipation factor?
Dissipation Factor is a dimensionless measure and hence no units.What is dissipation factor in tan delta?
In another way, the healthiness of an electrical insulator can be determined by the ratio of the resistive component to the capacitive component. For good insulator, this ratio would be quite low. This ratio is commonly known as tanδ or tan delta. Sometimes it is also referred to as dissipation factor.What is a good dissipation factor for a capacitor?
1 ( 10%) or less, a ratio figure known as the "dissipation factor" (DF) is more commonly used.Is dissipation factor same as loss tangent?
Loss tangent (tan(δ)) (also referred to as dissipation factor (Df) by many PCB manufacturers) is a measure of signal attenuation as the signal propagates down the transmission line. This attenuation is the result of electromagnetic wave absorption in the dielectric material and is commonly known as dielectric loss.What is D in capacitance measurement?
D, the dissipation factor, is a value that represents the tendency of an insulating or dielectric material to absorb some of the energy in an AC signal. Q, the quality factor, is the inverse of D. G is the equivalent parallel conductance measured with the parallel equivalent circuit model.What is DF power?
Dissipation FactorWith the exception of electrolytic and large power capacitors, most wound dielectric type units utilize a ratio figure known as the "dissipation factor" (OF) instead of the Power Factor (PF). By definition, this DF is the ratio of the equivalent series resistance to the reactance.
What does tan delta measure?
Tan delta (Tan δ, TD) testing, also called dissipation factor or loss angle, is used for measuring the degree of deterioration of shielded MV/HV cable insulation. The results reveal how contaminated, damaged, or water tree strewn the insulation has become.What is tan delta testing and how is it measured?
A Tan Delta test is performed by applying an ac voltage to a test cell of known gap, measuring the total current flow through the oil, and separating and comparing the reactive and resistance portions of the current passing through the oil.What does high dissipation factor mean?
Dissipation factor indicates the inefficiency of material to hold energy or behave as an insulating material. The lower the dissipation factor, the more efficient is the insulator system. Most plastics have relatively lower dissipation factor at room temperature.What is dissipation factor of transformer?
The dielectric dissipation factor tan δ measured with a Baur DTL-C provides information on the extent of dielectric losses in the transformer oil occurring during operation. It is defined as the ratio between the active and reactive currents flowing in a measurement circuit.Why is dissipation factor negative?
THE NEGATIVE DISSIPATON FACTORAs the dissipation factor indicates the quality of insulation materials by the tangent of the ratio of resistive current IR to capacitive current IC, a negative dissipation factor would imply a negative resistive current, which is physically impossible.
